Description
IP camera kit 16ch cctv system 5mp 16 channel poe 16ch ip camera kit cctv system
Features:

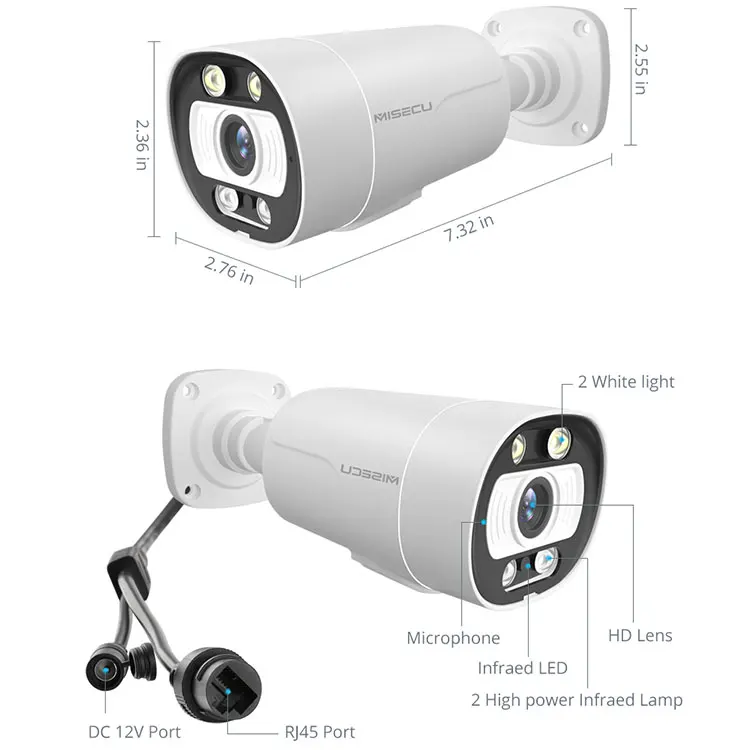

5MP High definition image, super infrared night vision, H265 Video
IP66 Waterproof Security Camera
Motion Detection + Email Alert +APP Push
The motion detection recording function: when motion is detected the NVR will save the footage into hard disk without missing any important events. You can even ensure that false alarms are avoided by setting the motion detection “mask” to block areas with constant movement.
Smart IR-Cut Night Vision
When The 2 White Leds Lighting, The Camera Will Show Colorful Vision At Night,
There Are Three Night Modes For You To Select. (Day Vision, Night Vision, Full Color Night Vision)
Easy access via mobile APP
Remote watch live video anytime anywhere,Support iPhone,Android mobile
|
Specification |
||
| Kits | Model Type: | 5MP 16CH POE Camera system |
| Model No. | TN-8916E-Q-16* 629EBP-AI- 50P | |
| POE Camera | Lens | 3.6mm |
| Sensor | 1/2.5"SC335E CMOS | |
| Image Pixel/Resolution | 5MP | |
| Image Compression: | H265+ | |
| Infrared Distance | To 30m | |
| Day & Night | Automatic IR-Cut | |
| 2D/3D DNR | Auto/BW/Color | |
| OSD | Date Time/Tilt | |
| Internet Interface | 1*RJ45 Ethernet Interface, 802.11b/g/n | |
| Power | 12V DC/2A (Output), 100-240V AC (Input) , 50-60HZ | |
| Shape material | Metal | |
| Waterproof | IP66 | |
| POE NVR | Model No | XM-6704FN |
| Audio interface | Two-way Audio, Bulit in Mic and Speaker, | |
| support audio and video synchronization | ||
| Video Output | Main Stream:5MP 2592*[email protected];4MP 2560*[email protected]; | |
| 2MP 1920*[email protected];Sub Stream:704*[email protected] | ||
| Record mode | Manual,Alarm,Motion Detection,Timing | |
| Internet Interface | 5*RJ45 10M/100M, 4*RJ45 support POE IEEE802.3af/at | |
| Backup method | USB,Mobile hard disk,network backup,SATA | |
| Network protocol | Onvif/P2P/RTSP/FTP/DHCP/NTP/UPnP | |
| Power | 48V/2A | |
| Size | L218*255*41mm | |
| Characteristics | AI | Human body motion detection,line detection |
| D-WDR | Support | |
| WEB | Support | |
| CMS | Support | |
| Operation interface | 16-bit true color graphic menu operator interface with mouse operation | |
| Video access | 4 channels 5M/8 channels 5M/16 channels 5M | |
| Motion Dection | Support | |
| Storage Type | 1 * SATA Interface(Max 8TB) | |
| OEM & ODM | Support | |
| Custom LOGO | Support | |
| Kit Including | Packing info | *1 x 16CH 5MP 48V POE NVR |
| *16 x 5MP Waterproof Outdoor POE IP Cameras | ||
| *16 x 20M Power Network Cable for Camera | ||
| *1 x Power Supply for NVR | ||
| *1 x Mouse for NVR | ||
| *1 x User manual | ||
| *16 x Waterproof Connector for Cable | ||
| *2 x Warning Sticker ( gift ) | ||
